SDK-03 Load Cell Accessories Weighing Module Capacity 500kg-5000kg

Name: SDK03 Load Cell Accessories Weighing Module Capacity 500kg5000kg
Brand: TOP SENSOR
Price: 1 USD

Brand Name : TOP SENSOR

Model Number : SDK-03

Place of Origin : China

MOQ : 3 pcs

Payment Terms : T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 20 -30 days

Material : Alloy Steel or Stainless Steel

Capacity : 500kg-5000kg

Application : Hopper Weighing

Cable Length : 3-10 meters

Water Protection : IP67,IP68

Load Cell type : Shear Beam Load Cell

Price : Negotiable

Contact Now

SDK-03 Load Cell Accessories Weighing Module Capacity 500kg-5000kg

Weighing Module, Load Cell Accessories

Model: SDK-03

Lift-off protection, High Stability
Self aligning construction
Nickel plated alloy steel, stainless steel available
Can be used with Single shear beam Load Cell

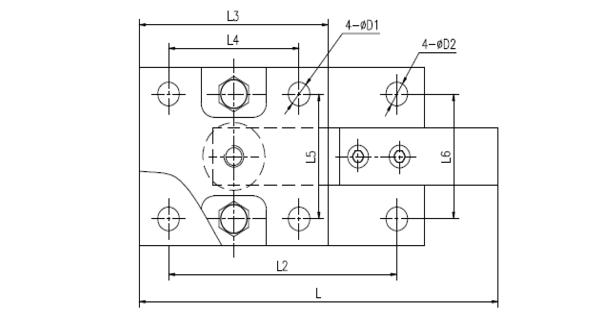

Dimensions(mm)

Capacity	H	H1	H2	B1	B2	D1	D2	L	L1	L2	L3	L4	L5	L6
0.25-2t	106	58	18	100	100	13	13	210	175	140	116	80	70	70
3-5t	135	73	23	160	160	17	17	270	235	200	150	100	90	90
